JPZ SX

CLASS：Pot Bearing

SPEC：JPZ SX

ETC：

Description:

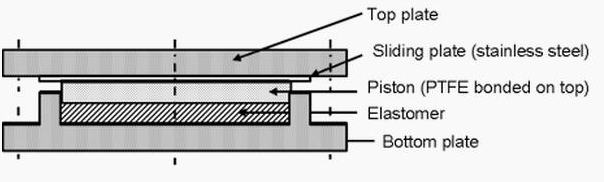

Pot Bearing ismainly composed of a steel pot, elastomeric pad, PTFE, stainless steel and topplate.
Through the fluid properties of elastomeric disc constrained in the steel pot,it can support vertical load as the rotation of the upper structure and underthe vertical load, to achieve displacement through sliding between stainlesssteel and PTFE.

Features：

• Compact structure

• Large load capacity

• Controlled sliding friction coefficient and small deformation.

• Widely suitable for highway bridge and municipal bridge constructions

Types:

• Fixed bearing

• Guided sliding bearing

• Free sliding bearing

Design andfabrication standard:

• Pot bearing for highway bridges JT/T391-2019

• In reference with EN1337-5

• In reference with AASHTO LRFD bridge design specifications

• In reference with BS 5400, Part 9, ”Bridge Bearing”

Certificate:

• CE Certificate of Constancy of Performance - Pot bearing under the standard ofEN 1337-5: 2005

• ISO 9001 Certificate - Quality Management System
